광섬유 레이저 출력이 끊임없이 진보하고 진입 원가가 낮아짐에 따라 광섬유 레이저 절단 시스템은 매우 경쟁력이 있게 되었다.고품질, 고효율 및 비용 효율적인 절단 솔루션에 대한 수요가 증가함에 따라 MixGas (레이저 절단을 위한 혼합 가스 혼합물) 와 같은 혁신은 업계의 요구를 충족시키고 있습니다.이 첨단 기술은 특히 도전적인 소재를 다루고 전반적인 생산 수익성을 높이는 데 효과적입니다.
광섬유 레이저 절단에서 질소는 일반적으로 고속 절단에 사용되며 산소는 탁월한 가장자리 품질을 실현하는 데 가장 선호됩니다.그러나 단독으로 사용할 때 이 두 기체는 모두 한계가 있다.믹스가스 기술은 질소(N₂)와 산소(O₂)를 특정 비율로 결합하고 두 가스의 강도를 결합해 기존 공기나 순수 질소 절단 방법에 비해 빠른 절단 속도와 높은 절단 품질을 구현할 수 있다.레이저 출력이 높을수록 MixGas를 사용할 때 성능이 향상됩니다.
8-30mm 탄소강의 30kW 혼합 가스 절단 결과
MixGas 시스템은 가장 작은 슬래그나 찌꺼기로 두꺼운 재료, 특히 탄소강을 절단할 수 있습니다.예를 들어, MixGas를 사용하는 6kW 레이저는 최대 8mm의 탄소강을 절단할 수 있고, 가시가 가장 작으며, 12kW 레이저는 최대 16mm의 탄소강을 처리할 수 있다.20킬로와트의 레이저는 20밀리미터에 달하는 탄소강을 절단할 수 있고, 30킬로와트의 레이저는 30밀리미터에 달하는 탄소강을 청결하게 절단할 수 있다.대조적으로, 이러한 전력 수준에서 순수 질소 또는 공기 절단을 수행하면 절단 품질이 저하되어 이러한 두께에 도달 할 수 없습니다.
레이저 전력 |
최대 가공 두께 |
6 kW |
8mm 탄소강 |
12 kW |
16mm 탄소강 |
20 kW |
20mm 탄소강 |
30 kW |
30mm 탄소강 |
가공 속도 향상
또한 MixGas는 상당한 속도 향상을 제공합니다.예를 들어, 6kW의 MixGas 장치는 5mm의 탄소강 절단 속도를 175% 향상시킬 수 있습니다.12kW의 시스템은 8mm 탄소강의 절단 속도를 284% 향상시켰고, 20kW의 설치는 12mm 탄소강의 속도를 271% 향상시켰다.30kW 시스템은 16mm 탄소강에서 400% 더 빠르게 절단됩니다.이러한 개선으로 처리 시간이 단축되고 처리량과 효율성이 향상되었습니다.
레이저 전력 |
가공 두께 |
속도 증가 |
6 kW |
5mm 탄소강 |
175% |
12 kW |
8mm 탄소강 |
284% |
20 kW |
12mm 탄소강 |
271% |
30 kW |
16mm 탄소강 |
400% |
낮은 가스 압력 요구 사항
혼합 가스 절단은 전통적인 질소 또는 공기 절단에 비해 낮은 압력으로 작동하여 가스 소비를 줄입니다.이는 운영원가를 낮추고 광섬유레이자절단이 대량의 응용에서의 전반 원가효익을 제고하는데 도움이 된다.

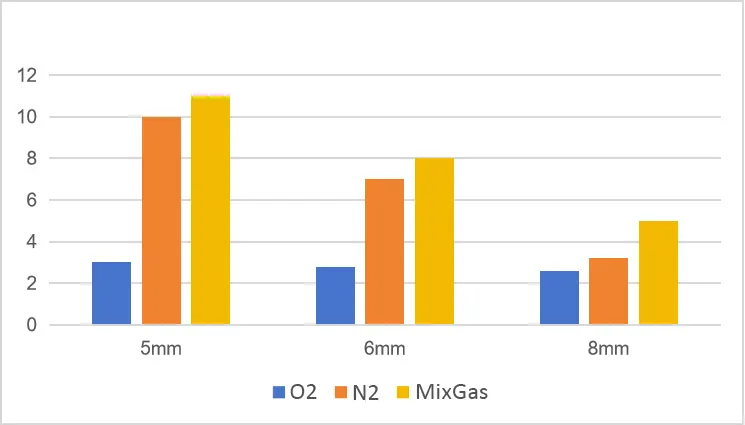

6kW 절단속도 비교(m/min)

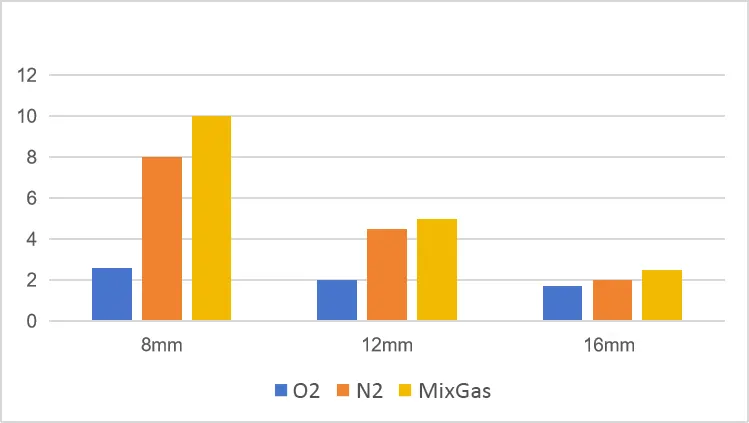

12kW 절단속도 비교(m/min)

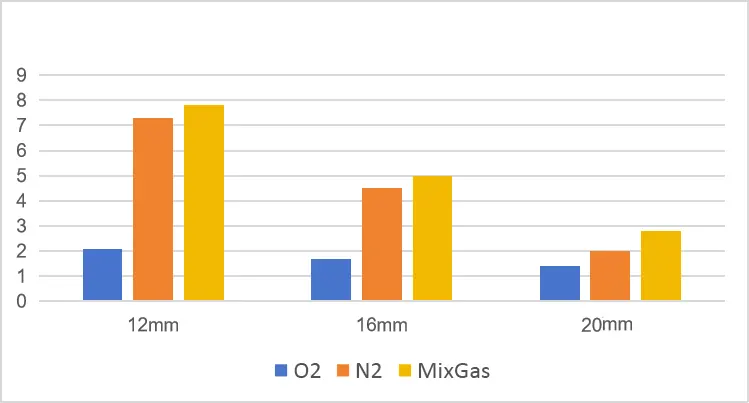

20kW 절단속도 비교(m/min)

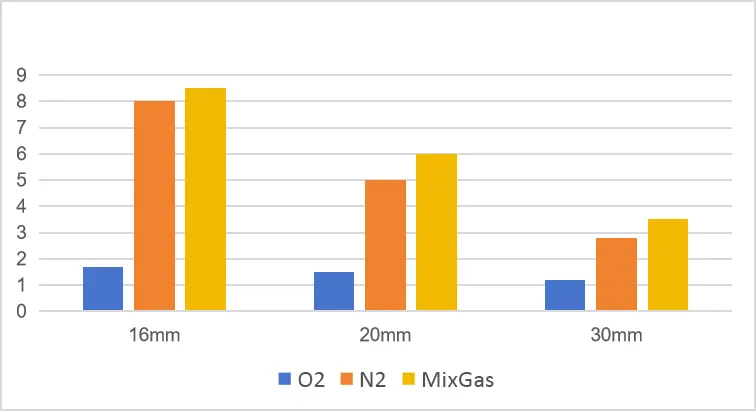

30kW 절단 속도 비교(m/min)
한국의 레이저 광섬유 레이저에 MixGas 기술을 사용하면 품질과 효율이 현저하게 향상되고 생산 효율이 약 20% 향상되었다.향상된 절단 품질은 가시 제거 및 찌꺼기 제거와 같은 후처리 요구를 줄일 뿐만 아니라 최종 제품의 전반적인 마무리와 일관성을 향상시킵니다.
Han's Laser는 우수한 빔 품질과 신뢰할 수 있는 성능을 갖춘 고품질의 파이버 레이저 시스템을 제공합니다.이러한 시스템은 까다로운 요구 사항을 충족하도록 설계되었습니다.
