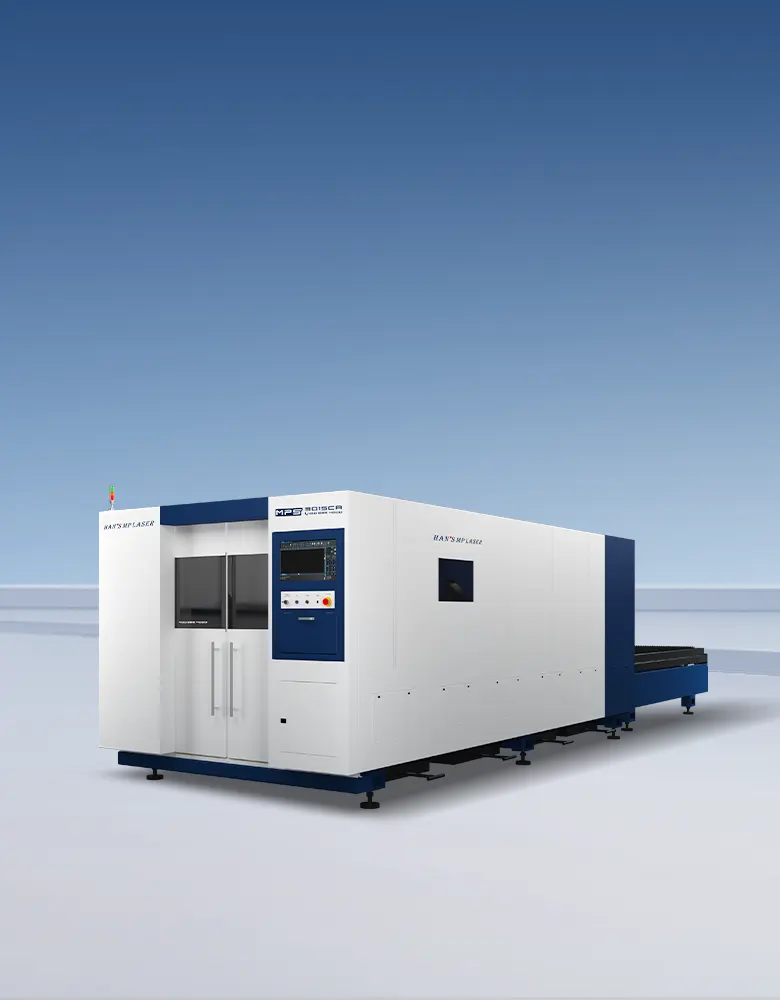

3015CA 전체 기계는 40GP 컨테이너에 선적할 수 있으며, 부지면적은 이전 포장안보다 25% 감소해 운임을 크게 절약할 수 있다.
일본 수입 미쓰비시 5축 용문 정밀 가공 센터 가공, 일회성 가공을 사용하여 선반 전체 가공 품질과 전체 기계 조립 정밀도를 보장합니다.
셀룰러 빔은 가공 전에 CAE 분석과 시뮬레이션을 통해 가공 품질을 보장합니다.
•한국의 IR & D 레이저 헤드, 초점 거리 ± 5mm에 달한다
• 초점 두 가지 고정 조정
• 영구적인 2차 보호창
• 검증된 밀봉 먼지 방지 설계
• 서보 모터 헤드, 빠르고 효율적인
• 주요 브랜드 QBH 커넥터와 호환
한 HL 광섬유 레이저 소스의 핵심 부품은 자체 개발한 것으로 빔의 품질이 좋고 전광 전환 효율이 높으며 변조 주파수 범위가 넓고 반사 저항력이 강하며 안정성과 신뢰성이 높으며 가공 효과가 좋고 유지보수 없이 운행하는 등 장점이 있다.고객의 요구를 만족시키는 동시에 한국 레이저는 맞춤형 서비스도 제공한다.
• 제어 시스템이 더욱 합리적이고 완벽하며 안정적입니다.중앙 컨트롤러는 스위치 장치의 타이밍을 제어하여 핵심 부품의 사용 수명을 잘 보호한다.
• 소프트웨어 인터페이스 디자인은 AI, DXF, PLT, Gerber 등 그래픽 데이터 형식을 지원하는 인간적이다.
• 컨트롤 캐비닛 전기 핵심 부품은 대만, 독일 및 일본에서 공급됩니다.
MPS-CA
작업 면적 [mm]
위치 정밀도(X/Y)
반복성 (X/Y)
최대 위치 속도(X/Y)
최대 가속도(X/Y)
가용 레이저 전력
크기(길이 x 가로 x 두께)
3000mm×1500mm
±0.05mm
±0.03mm
120m/min
1.2그램
1500w ⁄2000w ⁄3000w ⁄6000w(옵션)
8380mm×2220mm×2270mm
4000mm×2000mm
±0.05mm
±0.03mm
120m/min
1.2그램
1500w ⁄2000w ⁄3000w ⁄6000w(옵션)
10700mm×3420mm×2000mm
6000mm×2000mm
±0.05mm
±0.03mm
120m/min
1.2그램
1500w ⁄2000w ⁄3000w ⁄6000w(옵션)
14000mm×3420mm×2000mm
